Better Noctua fan mod for 'phat' PS2s

The place for all discussion on gaming hardware
Post Reply
User avatar
Gunstar
Posts: 644
Joined: Wed Apr 09, 2014 10:29 am
Location: UK

Better Noctua fan mod for 'phat' PS2s

Post by Gunstar »

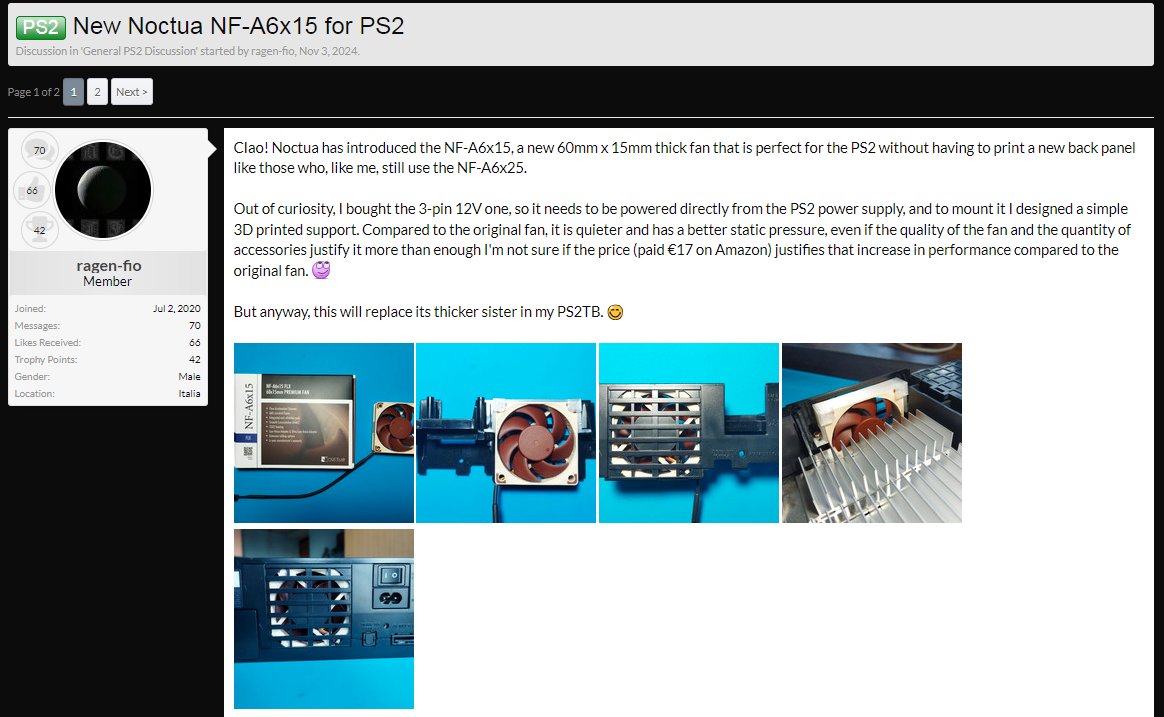

Credit to ragen-fio from the PSX palace forum (<- stl file in link)

Greg from Laser Bear industries gave it a look and it seems like it matches the stock fan in terms of temp control, I believe he was unhappy with the previous Noctua mods. In terms of noise it seems to match the 50k fan, which is pretty good for 30/39k PS2 owners. No real benefit for 50k PS2s but a good replacement if your fan is broken.


This system was tested with the thermal probe in the same place a while back, it hovered around 37-40C in a room that was cooler. They are functionally identical results. I won't say this is running cooler, but it's running close enough that I'm confident the Noctua 5v is the best for this application. The under-volted 12v fans ran too slow and were in the 50C range when I tested them.
Greg on noise vs a stock 50k fan:
It isn't a significant difference in sound unfortunately. The fan noise is amplified by the case so even though this fan is nearly silent, you will still notice it, especially on later model fat consoles, but on early fat consoles this will absolutely be better.
Greg on if it can make a 39k sound closer to a 50k stock fan:
It will meet that expectation for sure.
User avatar
SGGG2
Posts: 806
Joined: Thu Dec 31, 2009 1:03 am
Location: East Coast, US

Re: Better Noctua fan mod for 'phat' PS2s

Post by SGGG2 »

Finally, a fan we can put on the inside! :)
leonk
Posts: 1092
Joined: Sun Mar 13, 2011 9:29 pm
Location: Toronto, Canada

Re: Better Noctua fan mod for 'phat' PS2s

Post by leonk »

I never found the 3900x stock fan to be that bad. Nothing close to as horrible as a backwards compatible PS3; how anyone plays on that is beyond me.
