Leo's exciting hand held LAG TEST device - out now !

Post by Fudoh »

I've been waiting for this for some time now and just got an email that the first units are available NOW.

It's got a HDMI output, but using a HDFury and maybe a scan converter we should be able to use this will all kinds of digital displays, analogue CRTs or even video processors.

GBP 70 + shipping. Just ordered mine!

http://www.leobodnar.com/shop/index.php ... cts_id=212

User avatar
undamned
Posts: 3273
Joined: Sat Jan 29, 2005 9:27 am
Location: Phoenix

Re: Leo's exciting hand held LAG TEST device - out now !

Post by undamned »

Excellent! :D
-ud
Righteous Super Hero / Righteous Love
User avatar
akumajo
Posts: 542
Joined: Thu Sep 04, 2008 12:37 am

Re: Leo's exciting hand held LAG TEST device - out now !

Post by akumajo »

nice, bought one too
now I will know about my projector :)
User avatar
Fudoh
Posts: 13019
Joined: Mon Mar 06, 2006 3:29 am
Location: Germany
Contact:

Re: Leo's exciting hand held LAG TEST device - out now !

Post by Fudoh »

projector measurement could turn out tricky, since you'll block the light from the point of measurement. You might need a piece of tinted glass or plexi and measure "from behind".
User avatar
akumajo
Posts: 542
Joined: Thu Sep 04, 2008 12:37 am

Re: Leo's exciting hand held LAG TEST device - out now !

Post by akumajo »

is there a support page/forum or something ?

are you interested to create a list and results ? we should :)
User avatar
Fudoh
Posts: 13019
Joined: Mon Mar 06, 2006 3:29 am
Location: Germany
Contact:

Re: Leo's exciting hand held LAG TEST device - out now !

Post by Fudoh »

> is there a support page/forum or something ?

yeah, Leo got his own forum. I don't know if there's a thread on this little gadget yet.

http://www.leobodnar.com/forum/index.ph ... 094b8f2080

I'll certainly test everything I got! Will post the results here.
User avatar
Fudoh
Posts: 13019
Joined: Mon Mar 06, 2006 3:29 am
Location: Germany
Contact:

Re: Leo's exciting hand held LAG TEST device - out now !

Post by Fudoh »

The great thing for me is that I should be able to test the lag on all the upscalers I review without using extensive and complicated CRT dual screen setups...

In general *the* argument for this one is that you can take it a show floor full of TVs and test them all within a few minutes. No more waiting for reviews and such...
User avatar
BuckoA51
Posts: 3368
Joined: Sat Oct 02, 2010 10:08 am
Location: Ireland
Contact:

Re: Leo's exciting hand held LAG TEST device - out now !

Post by BuckoA51 »

Darn I really wanted one of these but will have to wait until the new year now, several unexpected expenses including an unwelcome DVDO Edge repair. Do let us know how well they work though.
OSSC Forums - http://www.videogameperfection.com/forums
Please check the Wiki before posting about Morph, OSSC, XRGB Mini or XRGB3 - http://junkerhq.net/xrgb/index.php/Main_Page
User avatar
Fudoh
Posts: 13019
Joined: Mon Mar 06, 2006 3:29 am
Location: Germany
Contact:

Re: Leo's exciting hand held LAG TEST device - out now !

Post by Fudoh »

mine's shipping with standard mail, so it will probably be new year till I get mine....

Sorry to hear about your Edge. What's the problem ?
NWrain
Posts: 242
Joined: Wed Oct 10, 2012 3:50 am
Location: NTSC-US

Re: Leo's exciting hand held LAG TEST device - out now !

Post by NWrain »

This is amazing!
User avatar
matrigs
Posts: 681
Joined: Mon Jan 18, 2010 7:27 pm
Location: Poland

Re: Leo's exciting hand held LAG TEST device - out now !

Post by matrigs »

actually, of course this is some proper professional gear, but i'm thinking if it wouldn't be possible to make something similar a bit more low budget.

as far as i understand the device outputs some high-speed flashes to the screen which feeds some optical sensor (you can see it in the picture of the back of the device, in the opening) and it measures the delay between those.

i don't think it should be very hard to make something similar with an arduino and an opto-sensor. question is just if the arduino would cope with the speed of these measurements.
User avatar
akumajo
Posts: 542
Joined: Thu Sep 04, 2008 12:37 am

Re: Leo's exciting hand held LAG TEST device - out now !

Post by akumajo »

Code: Select all

Sorry, the product was not found.
Is it out of stock ? :twisted:
User avatar
Fudoh
Posts: 13019
Joined: Mon Mar 06, 2006 3:29 am
Location: Germany
Contact:

Re: Leo's exciting hand held LAG TEST device - out now !

Post by Fudoh »

Haha, maybe. Hope it's nothing faulty with the batch.
User avatar
Ed Oscuro
Posts: 18654
Joined: Thu Dec 08, 2005 4:13 pm
Location: uoıʇɐɹnƃıɟuoɔ ɯǝʇsʎs

Re: Leo's exciting hand held LAG TEST device - out now !

Post by Ed Oscuro »

Fudoh wrote:projector measurement could turn out tricky, since you'll block the light from the point of measurement. You might need a piece of tinted glass or plexi and measure "from behind".
Wouldn't holding it in the direction of the projector in an otherwise dark room count?

Very neat piece of equipment, will love to see this in use in more reviews about monitors and televisions.
Omnicron
Posts: 7
Joined: Sun Feb 12, 2012 5:21 am

Re: Leo's exciting hand held LAG TEST device - out now !

Post by Omnicron »

Thanks for the notification on this product. Ive been watching for Leo's product for many months. As someone mentioned above, its not listed as such right now, at least the project has/is moving along.
User avatar
Fudoh
Posts: 13019
Joined: Mon Mar 06, 2006 3:29 am
Location: Germany
Contact:

Re: Leo's exciting hand held LAG TEST device - out now !

Post by Fudoh »

got my shipping confirmation. And the order page is up and running again!
Omnicron
Posts: 7
Joined: Sun Feb 12, 2012 5:21 am

Re: Leo's exciting hand held LAG TEST device - out now !

Post by Omnicron »

Nice! its on then, ive just ordered one too!
User avatar
matrigs
Posts: 681
Joined: Mon Jan 18, 2010 7:27 pm
Location: Poland

Re: Leo's exciting hand held LAG TEST device - out now !

Post by matrigs »

i'm kinda curious how this will cope with stuff like lcd-overdriving and other similar patents
User avatar
akumajo
Posts: 542
Joined: Thu Sep 04, 2008 12:37 am

Re: Leo's exciting hand held LAG TEST device - out now !

Post by akumajo »

Fudoh wrote:got my shipping confirmation. And the order page is up and running again!
Did you cheat :mrgreen: ? I'm pretty sure you will receive it this week.
User avatar
Fudoh
Posts: 13019
Joined: Mon Mar 06, 2006 3:29 am
Location: Germany
Contact:

Re: Leo's exciting hand held LAG TEST device - out now !

Post by Fudoh »

It's only shipping with standard UK mail, since there were issues with the paypal checkout (the process had me pay before I even could pick a delivery method). And UK mail isn't this fast. I'm expecting it after the holidays.
User avatar
BuckoA51
Posts: 3368
Joined: Sat Oct 02, 2010 10:08 am
Location: Ireland
Contact:

Re: Leo's exciting hand held LAG TEST device - out now !

Post by BuckoA51 »

Sorry to hear about your Edge. What's the problem ?
Well, there was this bang sound and then, it stopped recognising any signals on any of the HDMI inputs, though analogue was working fine. They wanted £260 ish to repair it so in the end I just got a reconditioned Edge Green with 1 year warranty instead.
OSSC Forums - http://www.videogameperfection.com/forums
Please check the Wiki before posting about Morph, OSSC, XRGB Mini or XRGB3 - http://junkerhq.net/xrgb/index.php/Main_Page
User avatar
Fudoh
Posts: 13019
Joined: Mon Mar 06, 2006 3:29 am
Location: Germany
Contact:

Re: Leo's exciting hand held LAG TEST device - out now !

Post by Fudoh »

end I just got a reconditioned Edge Green with 1 year warranty instead.
oh, that's interesting. I'm looking forward to your update what's working on it and what not. When I last checked 240p was very problematic.
User avatar
BuckoA51
Posts: 3368
Joined: Sat Oct 02, 2010 10:08 am
Location: Ireland
Contact:

Re: Leo's exciting hand held LAG TEST device - out now !

Post by BuckoA51 »

240p doesn't work at all, 288p is recognised as 480i. Everything else seems pretty much the same, anything else specific you want me to check?

Edit, I mean 288p is recognised as 576i of course.
OSSC Forums - http://www.videogameperfection.com/forums
Please check the Wiki before posting about Morph, OSSC, XRGB Mini or XRGB3 - http://junkerhq.net/xrgb/index.php/Main_Page
User avatar
Fudoh
Posts: 13019
Joined: Mon Mar 06, 2006 3:29 am
Location: Germany
Contact:

Re: Leo's exciting hand held LAG TEST device - out now !

Post by Fudoh »

Can you retry 240p with gamemode on/off ? It should work in one of them (I think).
User avatar
Ed Oscuro
Posts: 18654
Joined: Thu Dec 08, 2005 4:13 pm
Location: uoıʇɐɹnƃıɟuoɔ ɯǝʇsʎs

Re: Leo's exciting hand held LAG TEST device - out now !

Post by Ed Oscuro »

On topic - this does work for CRT units? It would be very interesting to figure out if there is lag, and if so how severe, on HD CRTs when using different inputs, as well as looking at the various upscaler options as suggested.
Ex-Cyber
Posts: 1401
Joined: Thu Oct 25, 2007 12:43 am

Re: Leo's exciting hand held LAG TEST device - out now !

Post by Ex-Cyber »

matrigs wrote:i don't think it should be very hard to make something similar with an arduino and an opto-sensor. question is just if the arduino would cope with the speed of these measurements.
I think the bigger question is how the Arduino would generate the video signal. A moderately overclocked AVR can bit-bang standard-def, but that would limit you to analog inputs.
User avatar
marqs
Posts: 1057
Joined: Sat Dec 15, 2012 12:11 pm
Location: Finland

Re: Leo's exciting hand held LAG TEST device - out now !

Post by marqs »

matrigs wrote:i don't think it should be very hard to make something similar with an arduino and an opto-sensor. question is just if the arduino would cope with the speed of these measurements.

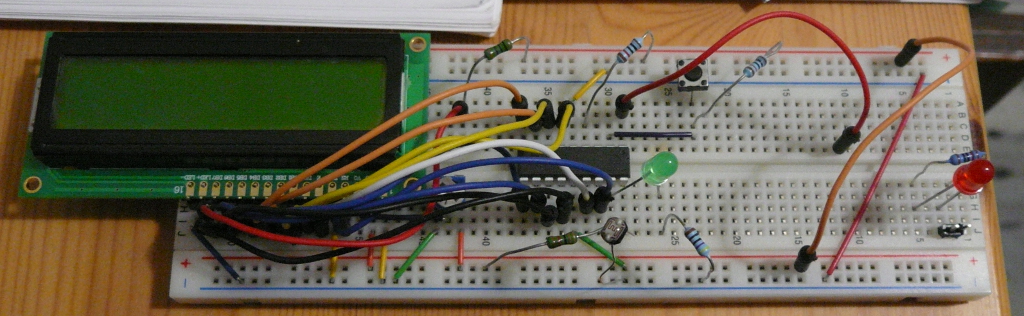

I built a system working on the same principle a few years back from PIC16F88, photoresistor and LCD display. The input signal is generated by PC and the result is shown on the LCD display. It naturally works with analog sources only, but is quite simple and cheap to build as can be seen here.
NWrain
Posts: 242
Joined: Wed Oct 10, 2012 3:50 am
Location: NTSC-US

Re: Leo's exciting hand held LAG TEST device - out now !

Post by NWrain »

Ed Oscuro wrote:On topic - this does work for CRT units? It would be very interesting to figure out if there is lag, and if so how severe, on HD CRTs when using different inputs, as well as looking at the various upscaler options as suggested.
I'm interested in something like that too. Fudoh mentioned using scan converters and the HD Fury. I want to know what kind of lag is on my VGA, HDMI, Component inputs, and also on my scaler as well.
User avatar
Fudoh
Posts: 13019
Joined: Mon Mar 06, 2006 3:29 am
Location: Germany
Contact:

Re: Leo's exciting hand held LAG TEST device - out now !

Post by Fudoh »

I have the stuff on hand, so it's easy. And even if there's additional lag with a HDFury or the scan conversion, it's easy to calibrate if you have a lag-free CRT to benchmark the "processing chain".

The HDFury converts from HDMI to VGA or component without changing the resolution. I don't know what the Lag tester does actually output. 480p, 720p or 1080p I guess, so the HDF alone allows for testing the VGA and component inputs already. With an Extron VSC unit I can convert VGA to SD composite, s-video, RGBs or component, so I can test all the upscalers I have as well.
User avatar
akumajo
Posts: 542
Joined: Thu Sep 04, 2008 12:37 am

Re: Leo's exciting hand held LAG TEST device - out now !

Post by akumajo »

website was updated and you can choose the ouput resolution (720p or 1080p), strange.
